Orthographic Camera

This project focused on creating a detailed orthographic illustration of a camera, emphasizing accuracy, proportion, and clarity. The goal was to represent the object from multiple viewpoints while maintaining consistent scale and alignment across all views.

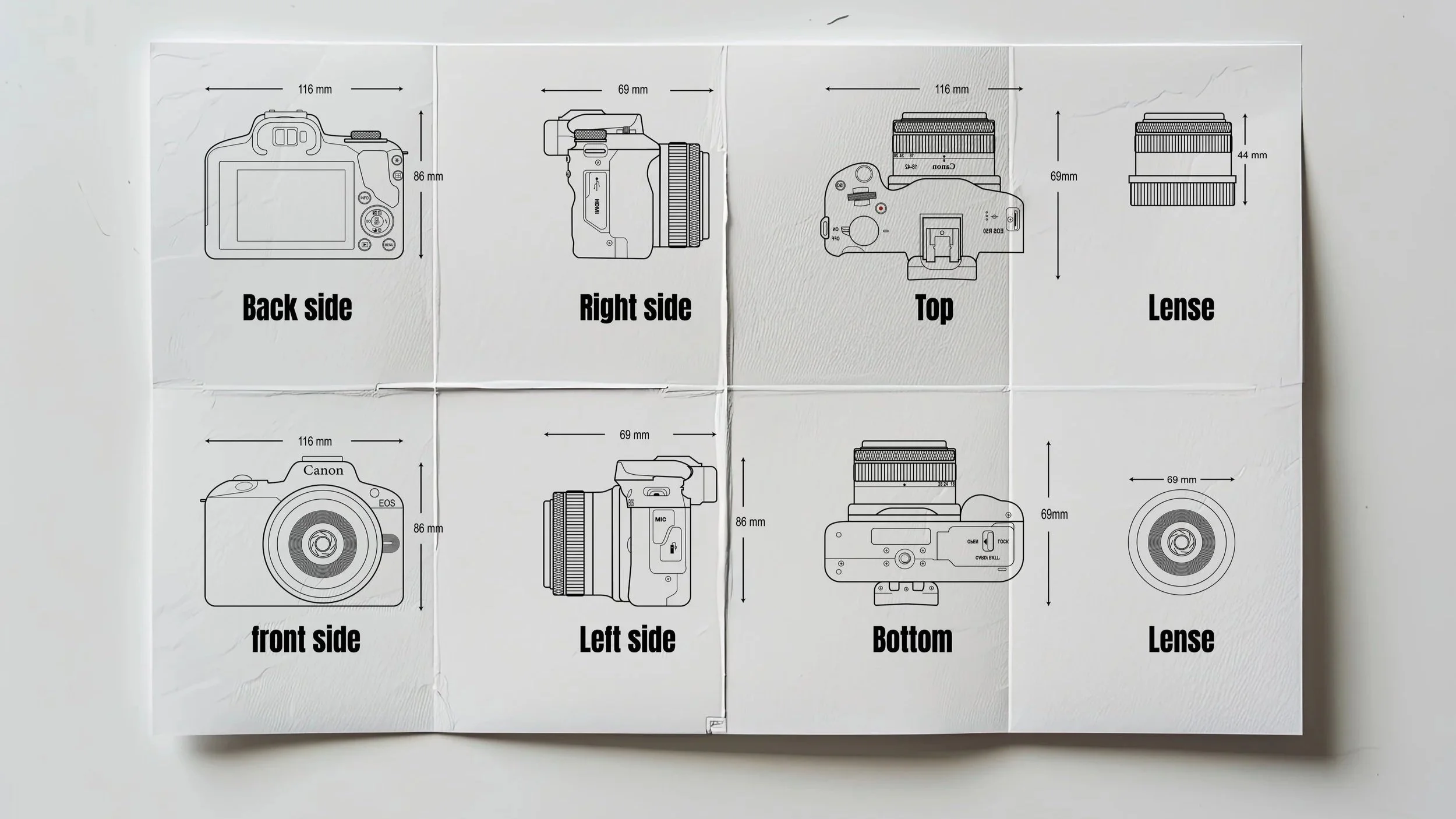

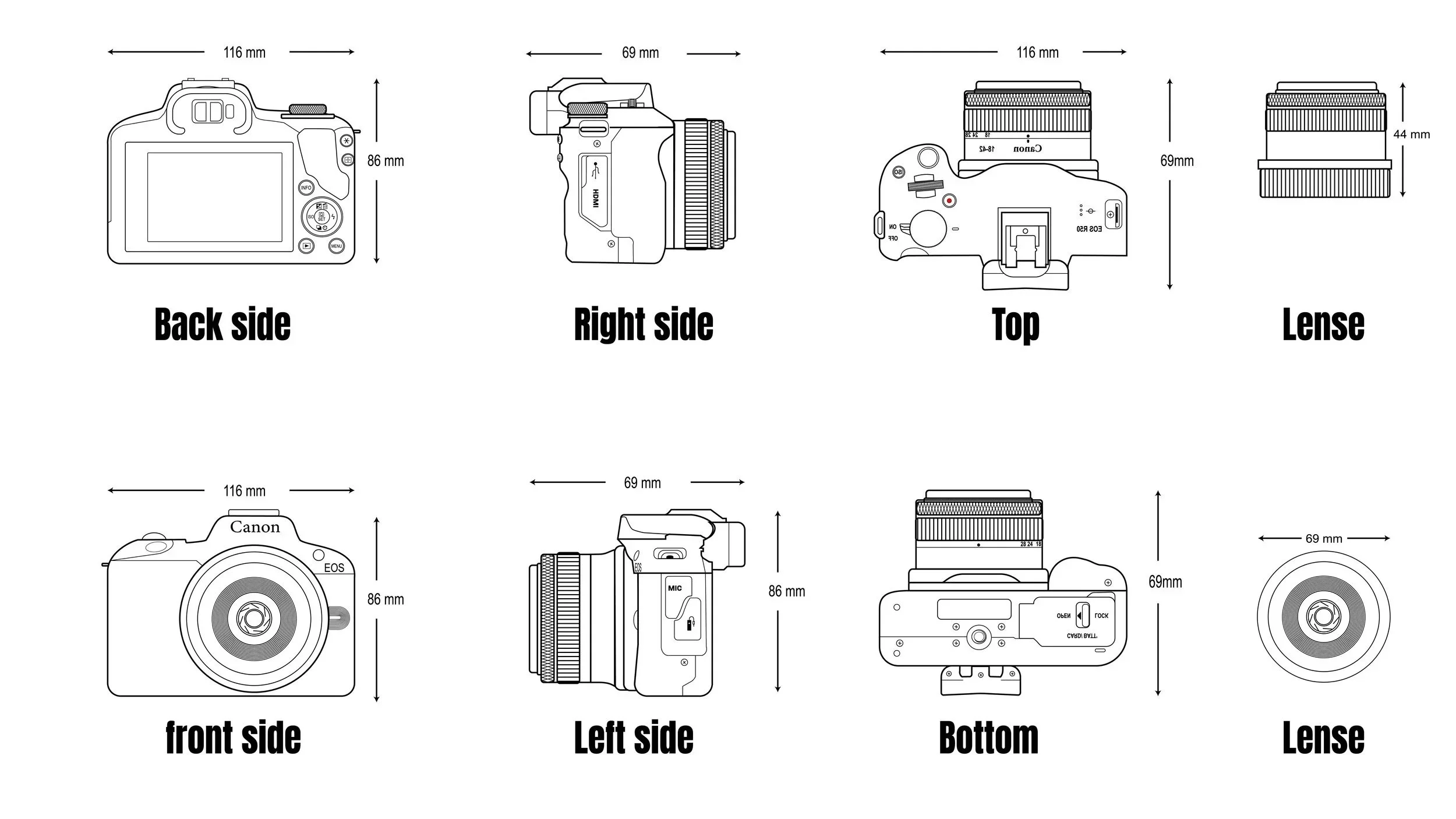

The final deliverables include front, back, side, top, and bottom views, along with lens details and precise measurements to clearly communicate the structure and dimensions of the object.
